KF-375 TR - Steel Or Stainless Steel
Reference: KF-375 D TR
€70.58
Secure payments
Quick Preparation & Tracked Delivery
Contact a sales representative

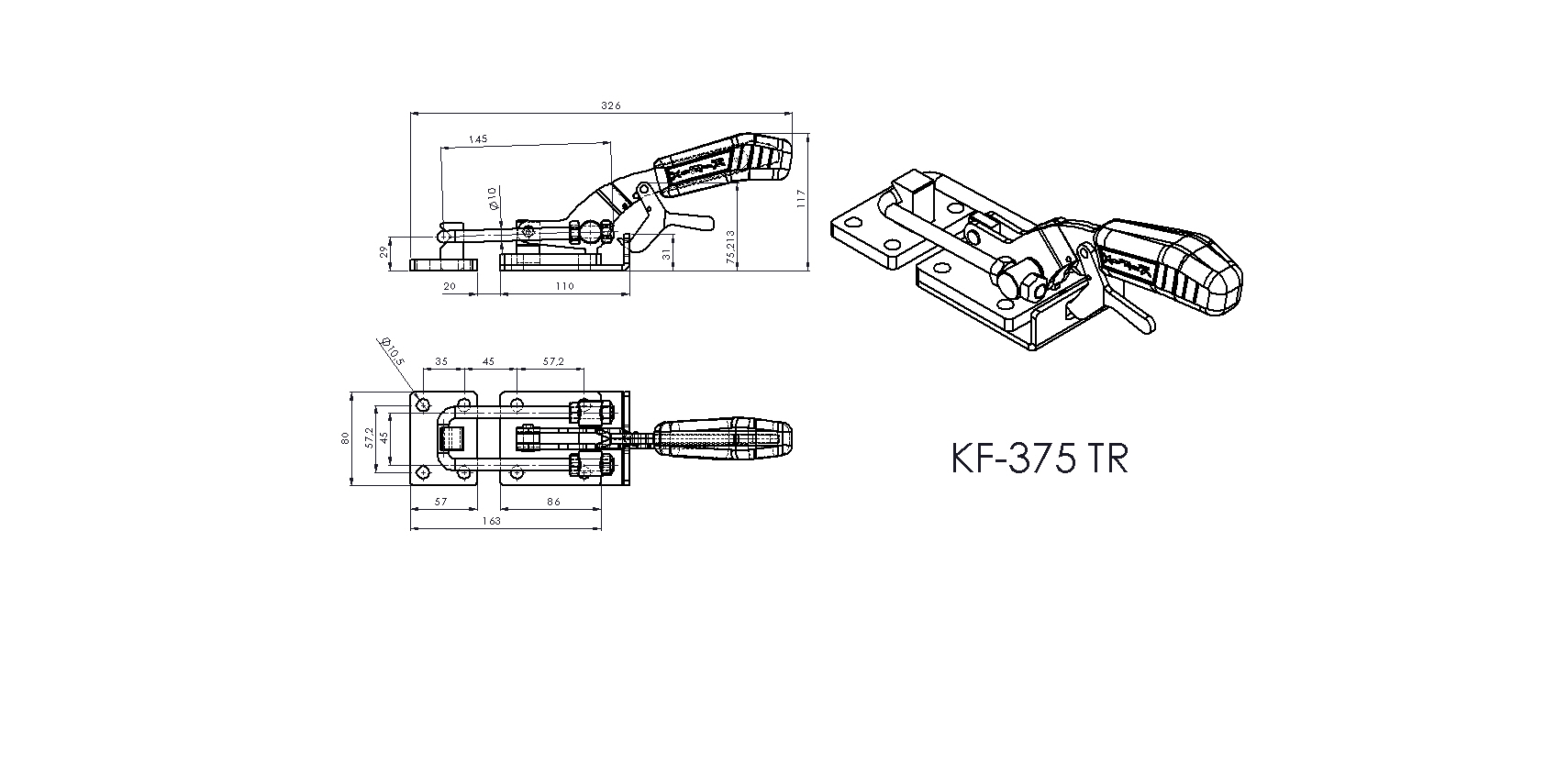

| RETENTION FORCE Kgf (lbf) | PLUNGER TRAVEL (in) | A (in) | B máx (in) | C (in) | D1 (in) | D2 (in) | E (in) | F1 (in) | F2 (in) | G (in) | H (in) | J (in) | N (in) | Q (in) | WEIGHT kg (lb) |
| 1500 (3300) | 20 (0,79) | 117 (4,61) | 326 (12,83) | 29 (1,14) | 35 (1,38) | 57,2 (2,25) | 57,2 (2,25) | 57 (2,24) | 86 (3,39) | 80 (3,15) | 45 (1,77) | 10,5 (0,41) | 10 (0,39) | 45 (1,77) | 2,140 (4,708) |
KF-375 D TR
Data sheet
- Weight
- 2.140kg / 4.708lb
- Force de rétention
- 1500kgf / 3300lbf
- Hauteur totale
- 117mm / 4,61in
- Largeur largeur
- 326mm / 12,83in
- Profondeur totale
- 80mm / 3,15in
- Materiaal
- Stainless Steel
Steel
Specific References
