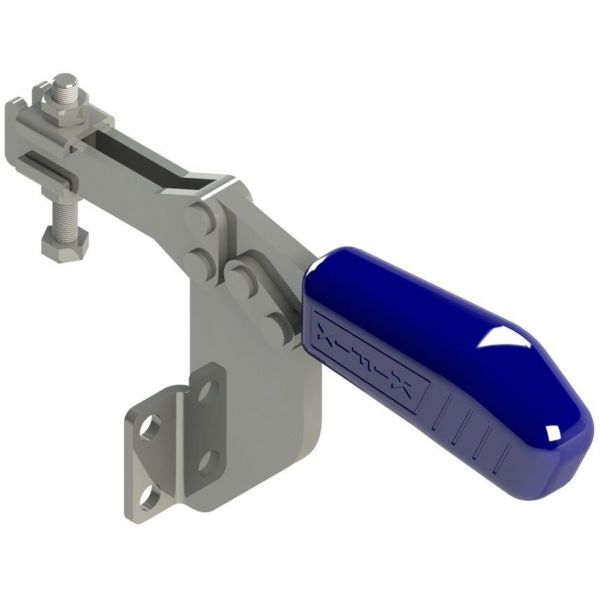

KF-152 F - Steel or Stainless Steel

    Reference: KF-152 F

    €17.80
    Material
    Quantity



    Secure payments



    Quick Preparation & Tracked Delivery



    Contact a sales representative

    RETENTION FORCE Kgf (lbf)A (in)B (in)C (in)D (in)E (in)F (in)G (in)H (in)J (in)OPENING ANGLEWEIGHT kg
    130 (286)95 (3,74)184 (7,24)74 (2,91)20 (0,79)25,5 (1,00)38 (1,50)37 (1,46)52 (2,05)7,0 (0,28)900,340 (0,748)
    KF-152 F

    Data sheet

    Weight
    0.340kg / 0.748lb
    Angle ouverture
    90°
    Force de rétention
    130kgf / 286lbf
    Hauteur totale
    95mm / 3,74in
    Largeur largeur
    184mm / 7,24in
    Profondeur totale
    37mm / 1,46in
    Material
    Stainless Steel
    Steel

    Specific References
